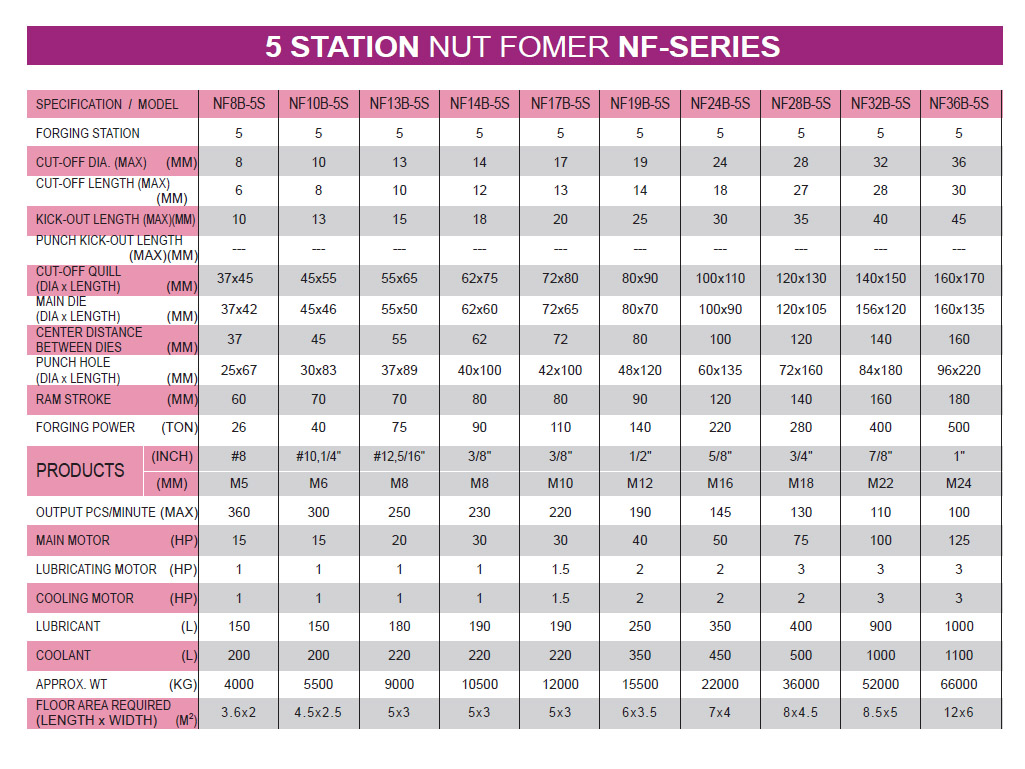

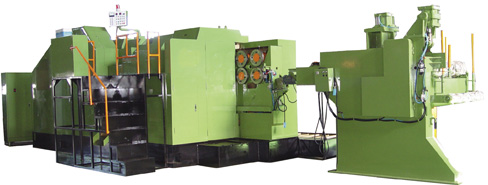

5 & 6 Station Long Stroke Nut Fomer NF-Series
| Model | CUT-OFF Dia. (max) (mm) | CUT-OFF LENGTH (max) (mm) | KICK-OUT LENGTH (max) (mm) | OUT-OFF QUILL (DIA x LENGTH) (mm) |
|---|---|---|---|---|
| NF8B-5S | 8 | 6 | 10 | 37x45 |
| NF10B-5S | 10 | 8 | 13 | 45x55 |
| NF13B-5S | 13 | 10 | 15 | 55x65 |
| NF14-5S | 14 | 12 | 18 | 62x75 |
| NF17B-5S | 17 | 13 | 20 | 72x80 |
| NF19B-5S | 19 | 14 | 25 | 80x90 |
| NF24B-5S | 24 | 18 | 30 | 100x110 |
| NF28B-5S | 28 | 27 | 35 | 120x130 |
| NF32B-5S | 32 | 28 | 40 | 140x150 |
| NF36B-5S | 36 | 30 | 45 | 160x170 |
