Tubular Rivet Heading Machine

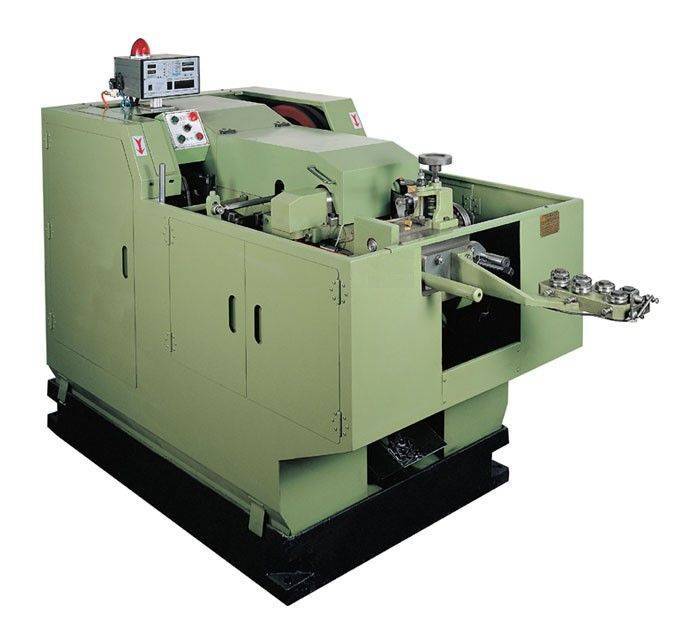

Tubular Rivet Heading Machine LD10


Model
Max. Production Dia. (mm) Max. Production Length (mm) Stroke (mm) Max. Production Speed (pcs/min) Heading Die Dia. (mm) Cut-off Die Dia. (mm) 1st Punch Dia. (mm) 2nd Punch Dia. (mm) Packing Size LxWxH Main Motor (HP) Gross Weight (kg) Net Weight Approx (kg)
4 18 60 110-150 30 16 25 25 215*116*132 2 1100 950
LD11 5 36 80 100-120 34 19 31 31 221*124*133 2 1580 1400
LD11A 5 36 80 100-120 34 19 31 31 215*125*136 2 1380 1200
LD-12 6 45 112 100-120 34 19 31 31 221*124*124 3 1800 1600
LD-20 8 80 120 80-100 43 23 34 34 272*127*145 5 2500 2250

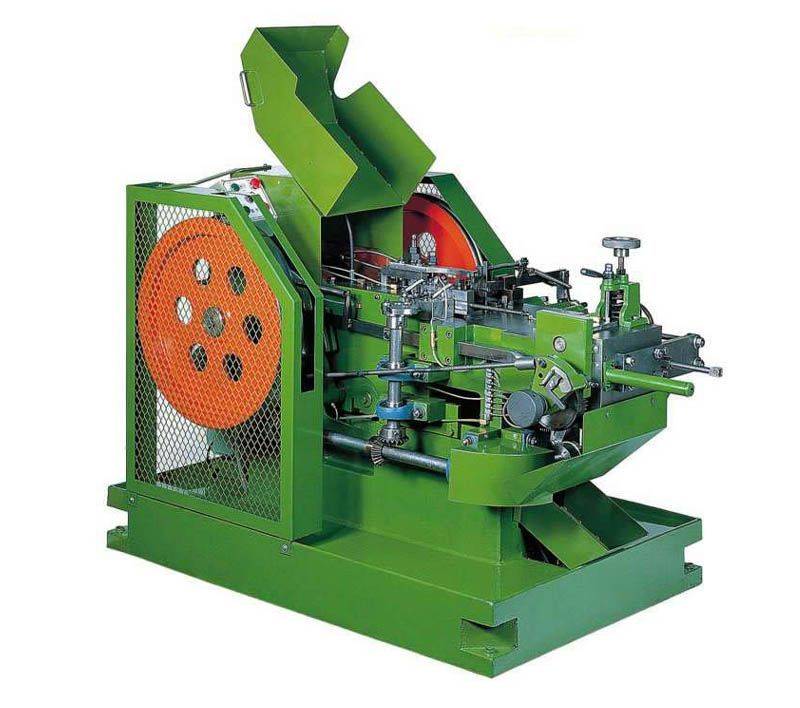

1Die 2-Blow Bush Cut-Off Semi-Tubular Rivet Heading Machine Model Np.: LD-B20A

item Capacity (mm) Output (pcs/min) Main Motor (HP) Stroke (mm) Heading Die Dia. (mm) Punch Dia. (mm) Cut-off Die Dia. (mm) Net Weight (kg) Gross Weight (Kg) Packing Size LxWxH
Semi-Tubular Rivet 6x45 60-100 3 112 34 31 19 2000 2250 250x130x180
Screw 6x65 60-120 3 112 38 31 19 2000 2250 240x130x180
